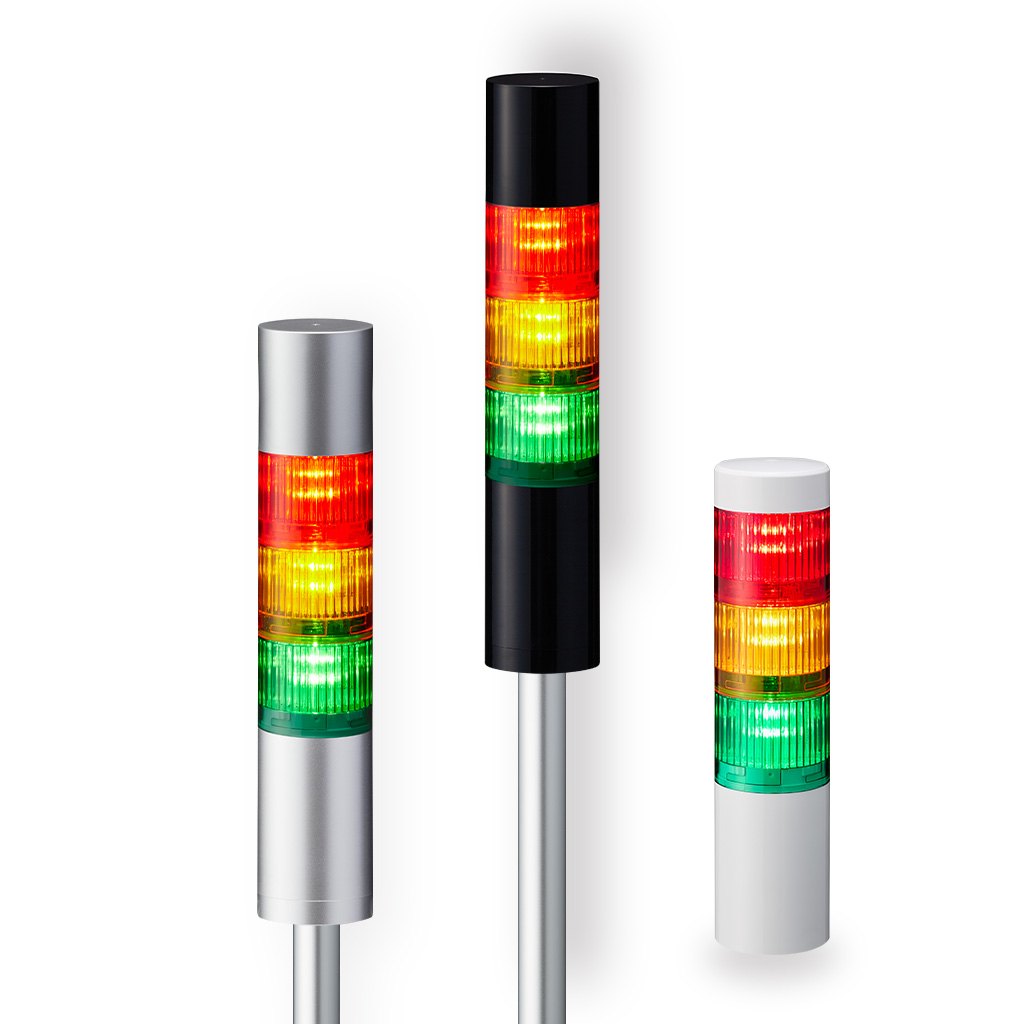

LR5-LAN

Direct LAN Control from Industrial PC/PLC

Simple Configuration & Easy Notification Setup

Φ50mm
HTTP(S)
Modbus/TCP
SOCKET
EtherNet/IP
IP65/IP54

Rated Voltage:	24V DC
Tiers:	Up to 5
Body Color:	Off-white / Silver / Black
Mounting:	Direct Mount / Pole Mount with L-bracket / Short Pole Mount with L-bracket
IP Rating:	IP65 (Direct Mount) / IP54 (Pole Mount / Short Pole Mount)
Protocol:	HTTP(S) / Modbus TCP / SOCKET (LR5-LAN) EtherNet/IP (LR5-LAN EtherNet/IP)
Sound Pressure:	85 dB (at 1m)

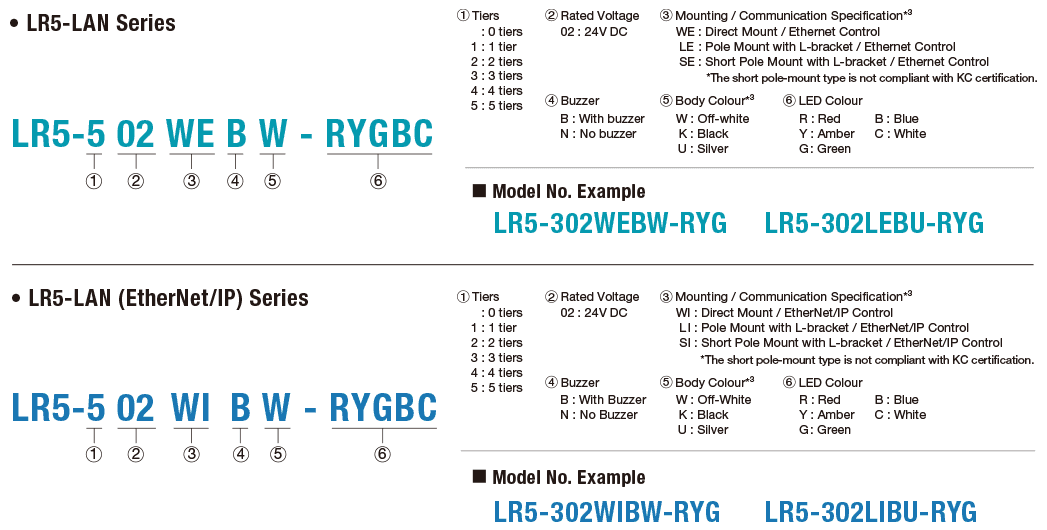

Model Number Configuration

Features
Function
Applications

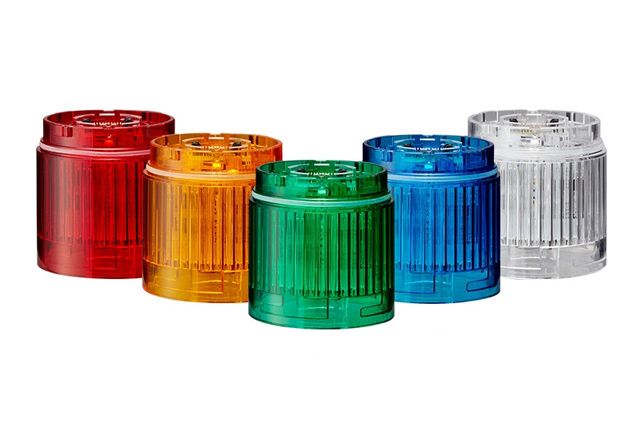

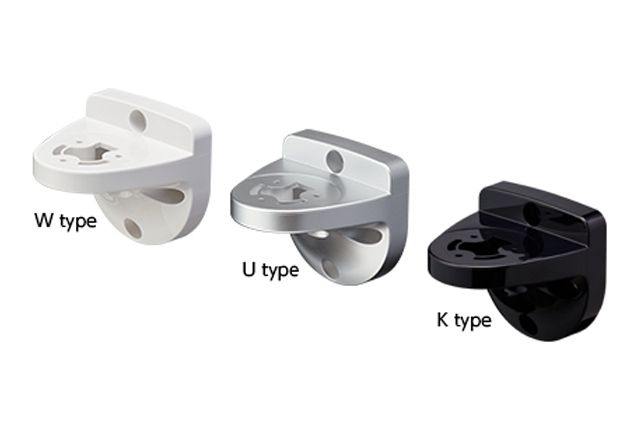

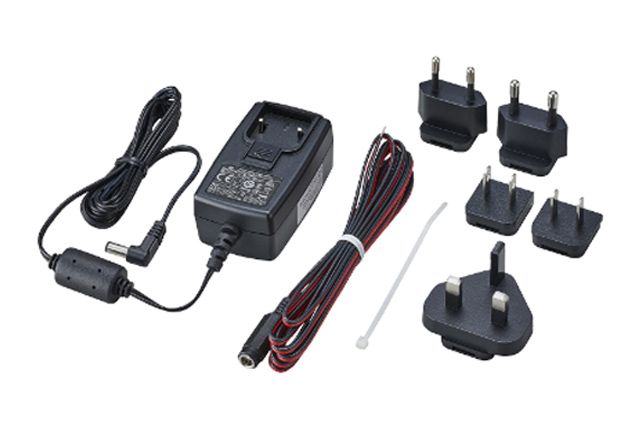

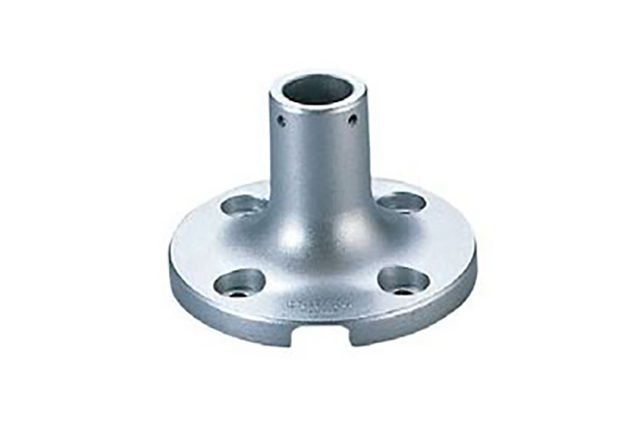

Optional Parts

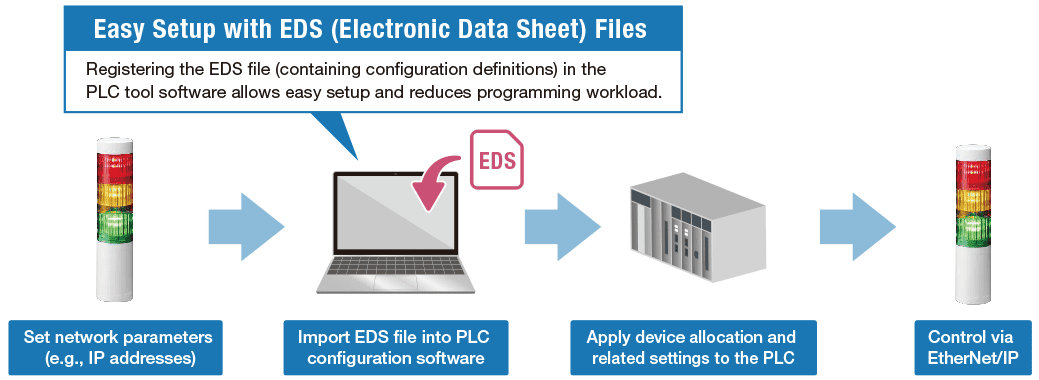

Compatible with EtherNet/IP, a widely used industrial network protocol
Reduces wiring requirements and system complexity
Direct LAN connectivity eliminates the need for I/O modules
Supports remote diagnostics, status monitoring, and data logging
Ensures reliable real-time control with PLC systems
Flexible signal control through software settings

LR5-LAN Compatible Functions
Protocol	Socket	✔
	Modbus/TCP	✔
	HTTP(S)	✔
	EtherNet/IP	—
Monitoring	PING	✔
Monitoring	Modbus/TCP	✔

LR5-LAN EtherNet/IP Compatible Functions
Protocol	Socket	—
	Modbus/TCP	—
	HTTP(S)	—
	EtherNet/IP	✔
Monitoring	PING	✔
Monitoring	Modbus/TCP	—

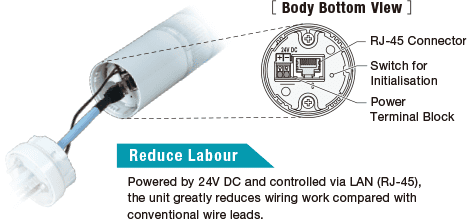

Direct LAN control eliminates the need for output boards, reducing system cost and maintenance.

Direct LAN-based control removes the need for additional output boards, simplifying system configuration and reducing installation and maintenance effort.
