37.5mm Wall Mount Signal Towers
WE
Experience seamless integration with the 37.5mm Wall Mount Signal Towers. The WE Series features a chrome-plated, slim-styled "half-moon" design, perfectly suited for modern equipment. Enhance your operations with this sleek, efficient signal solution.
- I/O Control
- Signal Tower
- W90×D37.5
- Continuous on
- Flashing (Strobe)
- Alarm
- 90dB
- Indoor only
- IP54
- IP65
- Red
- Amber
- Green
- Blue
- White
Product Features
- Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
- FB type: Built-in audible alarm with 90dB at 1m.
- Installation: Vertical and horizontal.
- Body Color: Chrome plated
- Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
- NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
- Lighting Pattern: Continuous and Flashing (Flashing only available for FB type)
- Dust-proof and waterproof IP65 (except for FB type: IP54).
- Available Colors: Red, Amber, Green, Blue, Clear/White.
Specifications
Dimensions | 37.5mm profile |
Rated Voltage | 24V AC/DC |
Functions | ・Continuous Only ・Continuous and Flashing (Flashing only available for FB type), Alarms |
Mounting | Wall Mount |
Body Color | Chrome Plated |
Body Style | Pre-assembled, pre-wired |
Stackable Tiers | Available from 3 to 5 tier versions |
Module Colors | Red Amber Green Blue Clear |
Audible Style | Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 90dB (at 1m) Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 90dB (at 1m) |
Conformity Standards | CE Marking UL Recognized Component (US) RoHS |
Protection Rating | IP65 IP54(FB Type) |

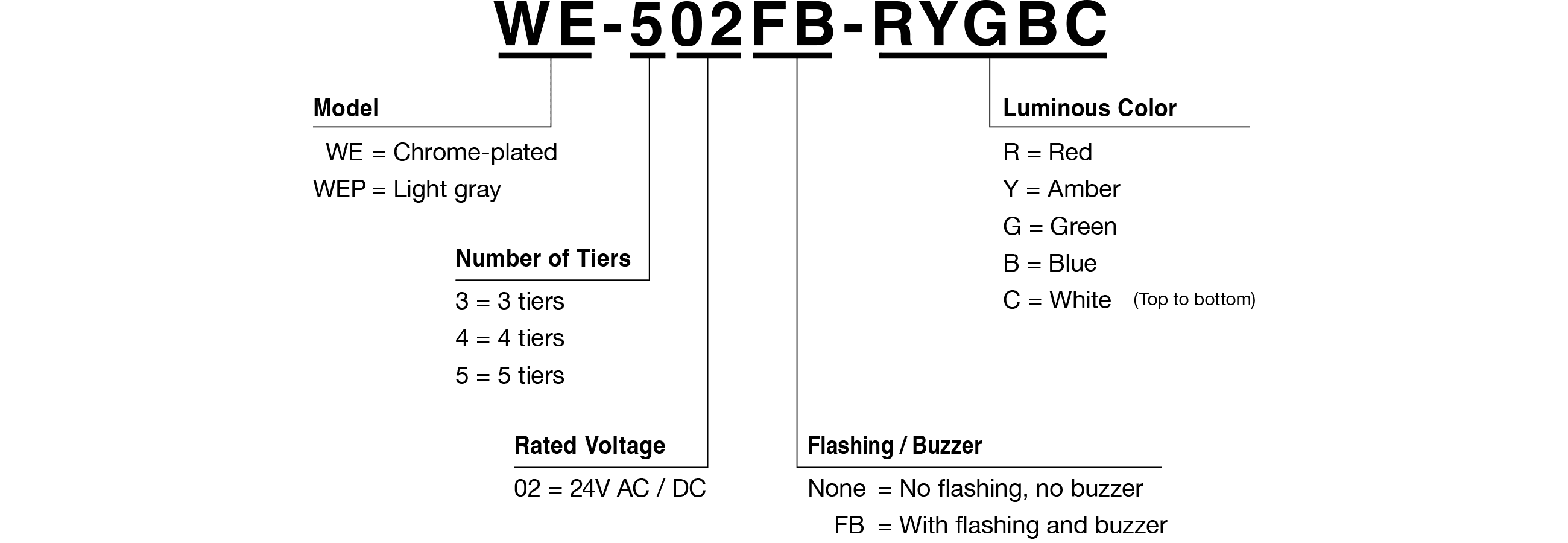

Model Number Configuration
