75mm Voice Synthesizer
BSV
The BSV 75mm Voice Synthesiser is a slim MP3 annunciator offering clear 75–90 dB audio, panel-mount design, and simple SD card setup—ideal for control panels and industrial signalling in space-constrained environments.
- I/O Control
- □75
- MP3 Annunciator
- Tones
- Voice
- 85dB or more
- Indoor
- Outdoor
- IP54
Product Features
・Slim Profile
Designed to complement compact machinery on production lines, this is our slimmest model yet—measuring only 19.9 mm in depth.
Despite its thin build, it achieves up to 87 dB at a 1-meter distance.
Front-access volume control and a low power consumption of just 3.5W (max) help reduce strain on the power supply.
・Front-Facing Installation
Maintenance is streamlined thanks to tool-less front panel access. The front cover can be easily detached for mounting and volume adjustments, helping to reduce installation time and labour costs.
・Flexible Message Updates
An SD card slot comes standard, allowing you to overwrite MP3 files directly.
You can update files using dedicated application software, or simply by renaming/replacing MP3 files on the SD card—no software needed.
・Extended Audio Playback
The BSV-L model supports long-form messages up to 520 seconds at 64 kbps bitrate.
This makes it ideal for detailed instructions, multilingual guidance, or extended alert sequences.
- Long Play Model: Approx. 520 sec (64 kbps)
- Standard Model: Approx. 63 sec (64 kbps)
Video
Model Specifications
Rated Voltage | - 12/24 V DC |
Mounting | - Panel mounting (upright only) |
Body Colour | - Dark Grey - Off-White - Silver |
Sound Output | - Max. 87 dB at 1 m (panel mount) - Max. 85 dB at 1 m (wall mount) |
Audio Storage | - Long Play: Approx. 520 sec (64 kbps) - Standard: Approx. 63 sec (64 kbps) |
Channel Inputs | - Bit Input: 4 channels - Binary Input: 15 channels |
Certifications | - CE - UL - RoHS |
Ingress Protection | - Panel Mount: IP54 (upright only) - Wall Mount: IP20 |
Playback Modes | - Standard - Hold - Priority Input - Memory Playback |
Input Type | - Supports both PNP and NPN transistors |
Options | - Playlist Editor 2 (free software) - SDV-2GP SD Card (for MP3 transfer and storage) |
Sample (Sound / Audio)

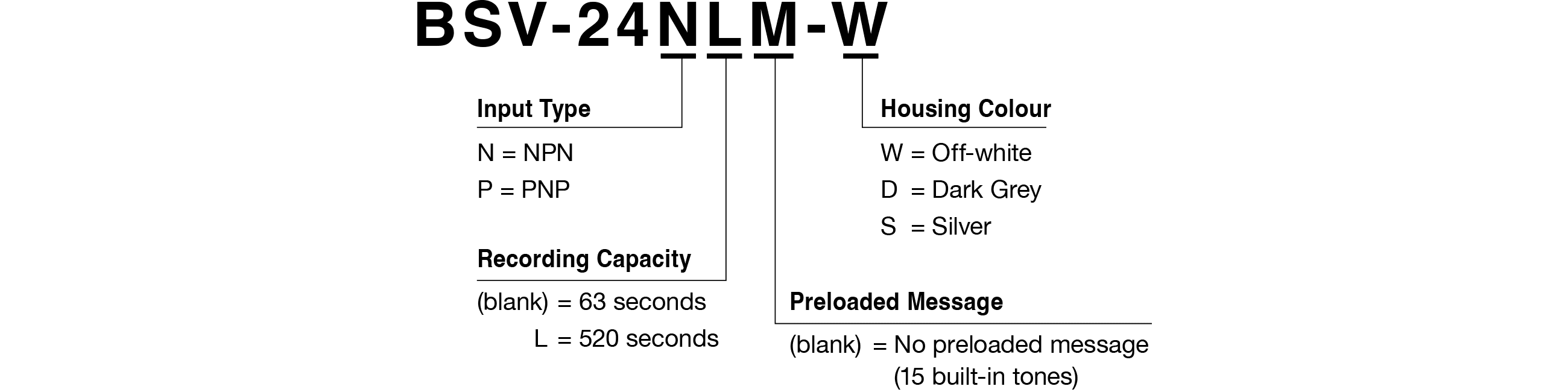

Model Number Configuration
Model Code

Product Lineup
Model Number | Rated Voltage | Input Type | Recording Capacity | Preloaded Message | Housing Colour |
---|---|---|---|---|---|
BSV-24N(L)-W/D/S | 12–24 V DC | NPN | 63 sec / 520 sec | — | Off-White, Dark Grey, Silver |
BSV-24P(L)-W/D/S | 12–24 V DC | PNP | 63 sec / 520 sec | — | Off-White, Dark Grey, Silver |
BSV-24N(L)M-W/D/S | 12–24 V DC | NPN | 63 sec / 520 sec | ✔ | Off-White, Dark Grey, Silver |
BSV-24P(L)M-W/D/S | 12–24 V DC | PNP | 63 sec / 520 sec | ✔ | Off-White, Dark Grey, Silver |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
Product Specifications
Other
repair parts
BSV/BSV-L
BSV/BSV-L
Replacement Parts
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
![]() |
V21110070-1F1 | 1 | ||||
![]() |
V21110070-2F1 | 1 | ||||
![]() |
Z33552121-0308F1 | 1 |
- |
- |
