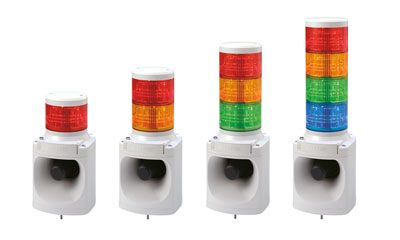

Φ100mm Signal Tower
LKEH-FA/C/D/E

The LKEH series is a combination of a signal tower and a powerful speaker with enhanced sound and capabilities. To use the LKEH-FV, you will need the software’s playlist editor. If you want to use the software to input text-to-speech data, please contact your PATLITE overseas office by email. The playlist editor will be sent to you.



  • I/O Control
  • Signal Tower
  • Φ100
  • Continuous on
  • Flashing (Strobe)
  • Hybrid Products
  • Tones
  • Melody
  • 105dB
  • Indoor and upright only
  • IP53
  • Red
  • Amber
  • Green
  • Blue
  • White
  • Φ100mm Signal Tower LKEH-FA/C/D/E

The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.

  • Visible from great distance with ultra bright LEDs and 100mm diameter lens.
  • Safe for use at high vibration environment with robust 2G vibration resistant design.
  • Easy to control with only one common wire for both LEDs and audible signals.
  • CE, RoHS, IP53, (UL, c-UL pending).
  • Field programmable with SD card. (Sold separately)
  • Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
  • Smooth LED lens surface.

PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan.
For additional information regarding this issue, please contact your local PATLITE sales representative.

Specifications

DIMENSIONS - 100mm diameter
RATED VOLTAGE - 24V DC
- 100V AC
- 220V AC
AUDIBLE STYLE - LKEH-FE available only
- Total of 32 pre-recorded sounds (See Specifications for sound list)
- Arrange in 8 selectable sound groups
- Each group has 4 pre-arranged sounds
VOLUME - Maximum 105dB at 1 meter with adjustable volume control
BODY STYLE - Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase
BODY COLOR - Light gray
GLOBE COLORS - Red
- Amber
- Green
- Blue
- White
GLOBE MATERIAL - Polycarbonate Resin
PROTECTION RATING - IP53
OPTIONS - SDV-2GP

How To Order

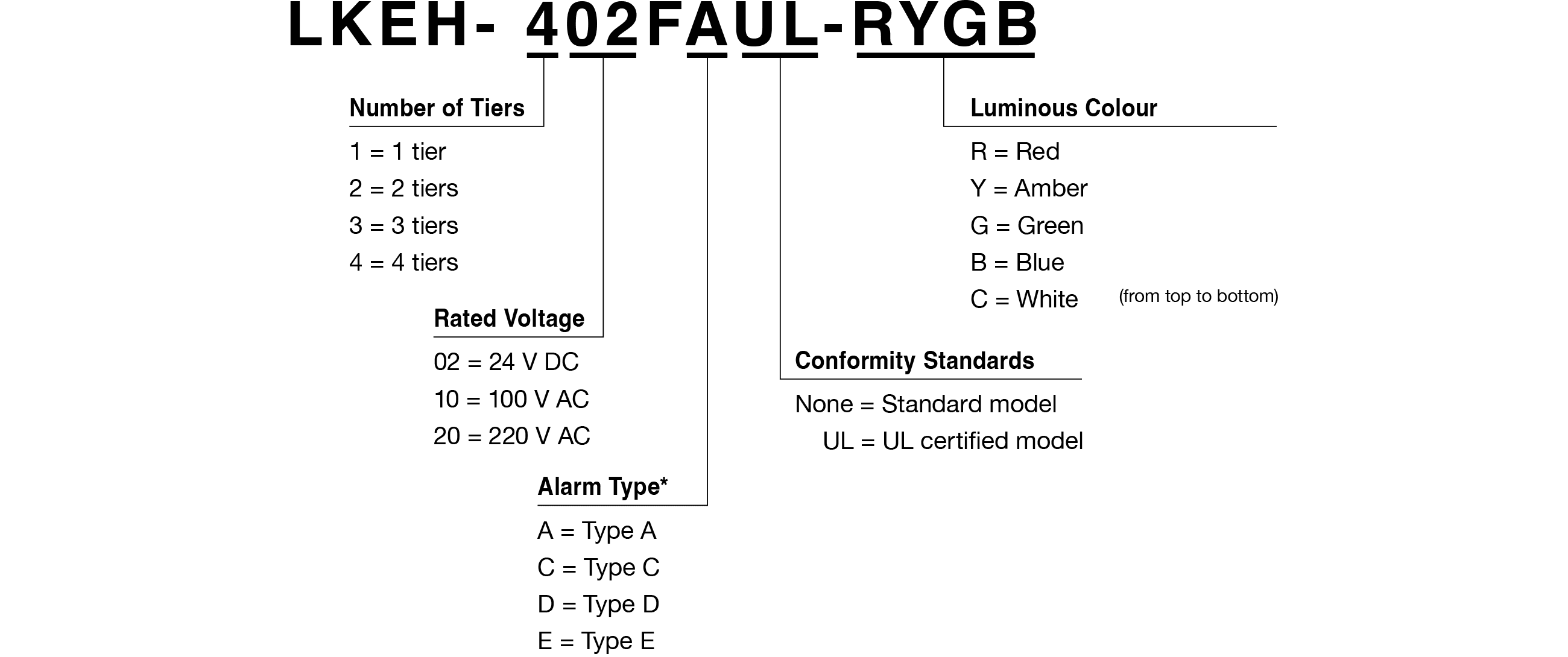

Model Code

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

LKEH-FA/C/D/E  

LKEH-FA/C/D/E  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover
B32310054-F1 1

																LED Unit: Red
B72100151-1F1 1-4: Depends on number of tiers.

																LED Unit: Amber
B72100151-2F1 1-4: Depends on number of tiers.

																LED Unit: Green
B72100151-3F1 1-4: Depends on number of tiers.

																LED Unit: Blue
B72100151-4F1 1-4: Depends on number of tiers.

																LED Unit: White
B72100151-7F1 1-4: Depends on number of tiers.

																Shaft for LKEH : 1 Tier (2 pieces)
B62910033-1F2 2

Includes flat washers and O-rings [2 pcs each]. M4×87mm.


																Shaft for LKEH : 2 Tier (2 pieces)
B62910033-2F2 2

Includes flat washers and O-rings [2 pcs each]. M4×147mm.


																Shaft for LKEH : 3 Tier (2 pieces)
B62910033-3F2 2

Includes flat washers and O-rings [2 pcs each]. M4×207mm.


																Shaft for LKEH : 4 Tier (2 pieces)
B62910033-4F2 2

Includes flat washers and O-rings [2 pcs each]. M4×267mm.


																Front Cover
C21100087-F1 1
