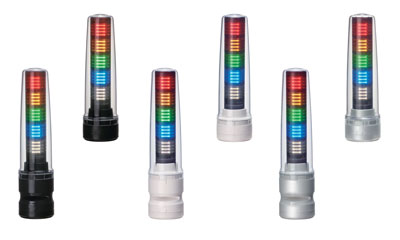

70mm LED Signal Tower
LS7
70mm LED Signal Tower
Suited for sanitary or harsh industrial environments, LS7 Series features a sleek, smooth surface design rated to IP65 for withstanding light washdown operations.
Azure function description Azure function description

Product Features


  • Smooth body, non-metallic enclosure for efficient water and dust runoff

  • Highly-efficient, unambiguous visual signaling

  • Lens cover is constructed from shock-resistant polycarbonate

  • Buzzer tones are specially designed to be heard above machine noise

  • M12 connector for quick and easy installation

  • Brackets available in all ABS plastic








Specifications

DimensionsΦ70mm
Rated Voltage24V DC
Mounting Platform Bracket
- SZ-100 (Off-white)
- SZ-100-D (Dark Gray)
- SZ-100-S (Silver)
Wall Mounting Bracket
- SZ-110 (Off-white)
- SZ-110-D (Dark Gray)
- SZ-110-S (Silver)
Body ColorOff-white
Dark Gray
Silver
Body StyleH-type : Pre-assembled, pre-wired
C-type : M12 Connector
Stackable Tiers3 or 5 LED color segments
Module ColorsRed
Amber
Green
Blue
Clear/White
Audible StyleBuzzer 1:
- Lead Wire Type (Intermittent beep1)
- M12 Connector Type (Continuous Beep) 82dB (at 1m)
Buzzer 2:
- Lead Wire Type (Intermittent beep2)
- M12 Connector Type (None) 85dB (at 1m)
Conformity StandardsCE Marking (24V only)
UL Component Recognition (US)
c-UL Component Recognition (Canada)
RoHS
Protection RatingIP65 (Illumination Type)
IP54 (Buzzer Type)
