Manual Control Signal Tower(LR5)

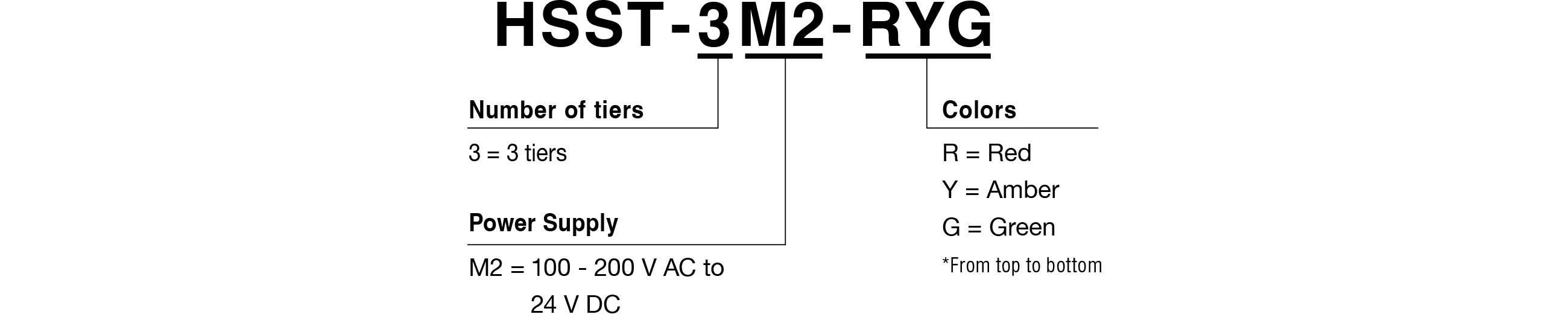

HSST-3M2
Manual Control Signal Tower(LR5)
Highly efficient, manually controlled signal tower kit with a corded switch box for easy operation. Ideal for workstations or call light applications.

Product Features

HSST KIT INCLUDES:


  • Signal Tower with 3 LED segments (Red, Amber, Green) with a pre-wired, 4' cable

  • 100-240V AC power supply with 6' cable

  • Control box with 3 latching buttons and mounting screws

  • 2-position mounting bracket with 2 adjustment screws, ideal for din rail or partition mounting

  • 3" and 12" mounting poles



Features












Specifications

Dimensions- Φ50mm x 307 (short pole)
- Φ50mm x 507 (long pole)
Rated Voltage- 100-240VAC
Body ColorOff-white
Functions- Continuous Lighting
- Manual Control
Mounting- Bracket-clamp Mount
- Wall Mount
- Cubicle-edge Mount
Stackable Tiers- Available only as a three-tier tower
Module Colors- LED Color: Add (Only Red/Amber/Green are available)
- Lens Color: Clear (Shows color when activated)
Conformity Standards- RoHS
- FCC
- UL48
-*EN61000-6-4, EN61000-6-2 EN61000-3-2, EN61000-3-3
Protection Rating- IP20 (Switch Box)
- IP54 (Signal Tower)
