USB Controlled Multicolor Signal Beacon

NE-USB USB Controlled Multicolor Signal Beacon: USB Bus Power & Easy Control.
Multi-color: 7 colors can be displayed to meet your application requirements.

Azure function description

Azure function description

Product Features

マルチカラーモデル

Supply power through bus power and controls with one cable when connected to a PC.

Easy programming using the DLL software library.
It can also be controlled by various protocols, so operating systems other than Windows can be used.

Control is possible without installing dedicated drivers because it is an HID class device.

Ideal for office and retail applications. Get gentle yet noticeable notification with the soft light from the translucent lens and alarms that are easy on the ear.

Neodymium magnet type allows easy installation on desks and walls.
In addition, the 1/4 inch screw receptacle supports a wide range of mounting methods such as tripods. ※NE-SN-USB

Pole mount and wall mount options available (NE-001D for pole-mounting and NE-002D wall-mounting).

※A USB cable (type A male to type C male) is not provided. To be obtained separately by the customer.
※Programming knowledge required to control unit from PC via USB port.

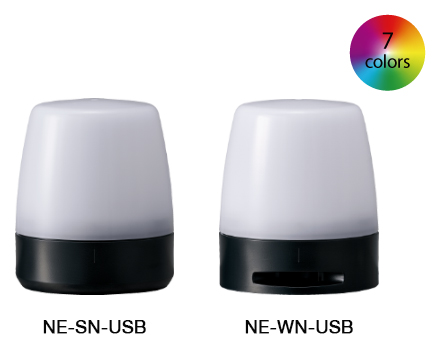

Model	NE-SN-USB		NE-WN-USB
Rated Voltage	5V DC (USB Bus Power)
Size	Φ56
Protection Rating	IP 20		IP 65 (Upright)
Installation Example
	Magnet mounting	1/4-inch screw mounting ※Please obtain tripod separately.	Wall mounting bracket	Pole mounting (pole bracket）

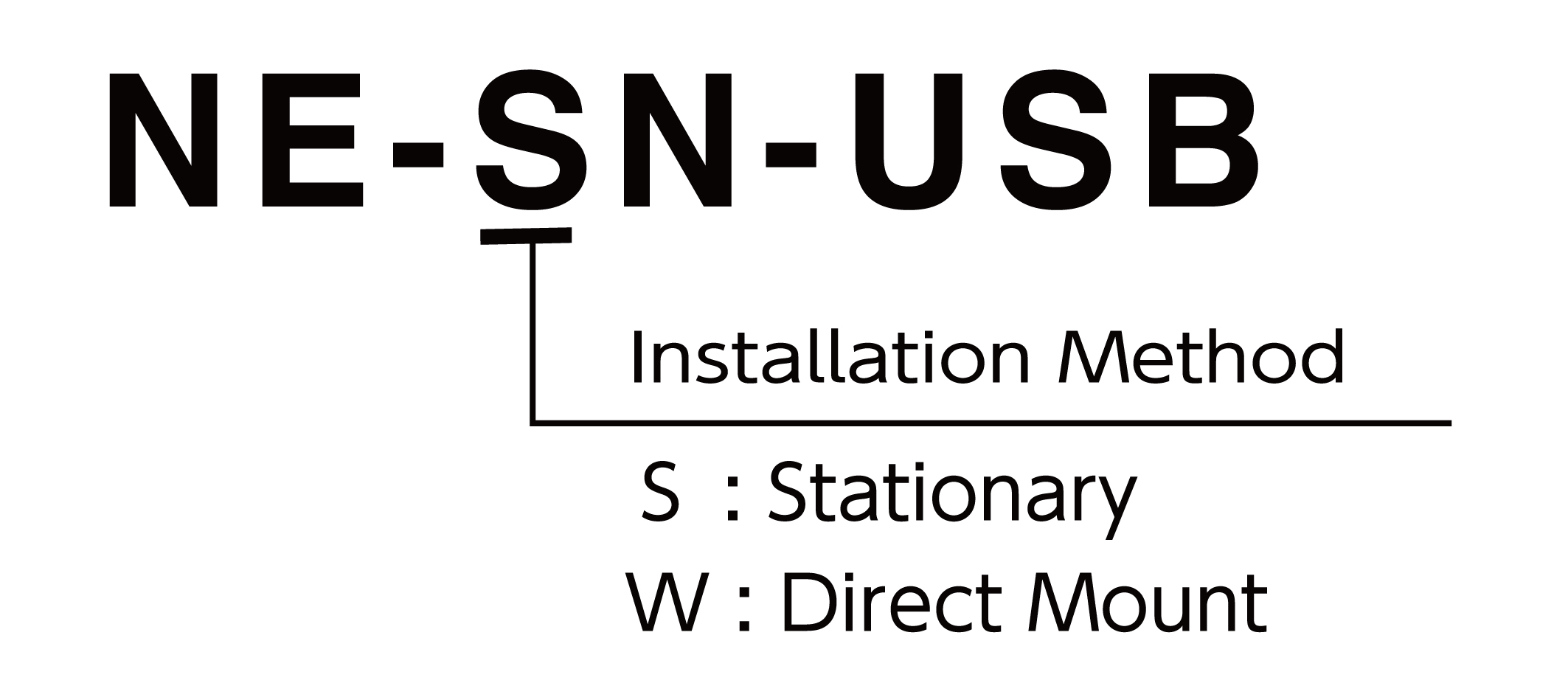

Model Number Configuration

モデルコード

Accessories

NE-001D
Upper bracket

NE-002D
Wall Mounting Bracket

SZ-010
Mounting Brackets

SZ-016A
Mounting Bracket

SZP-092D
1/2” NPT bracket

POLE-100A21+O0109
Pole

POLE-300A21+O0109
Pole

POLE-800A21+O0109
Pole
