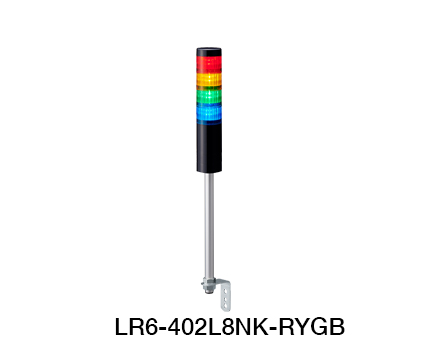

Signal Towers (M12 )

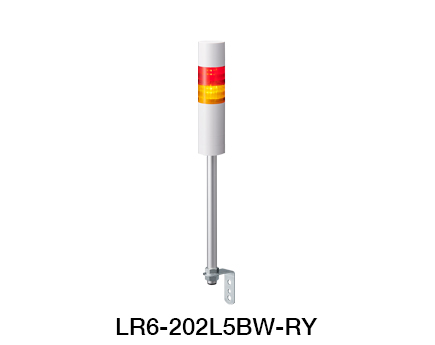

LR6 (Quick Disconnect M12)

Easy wiring with M12 connector specifications and reduced work hours. The reliable design and environmental adaptability make the Φ60 LR6 series Signal Tower Lights suitable for various applications.

【What is the M12 connector? 】 IEC 61076-2-101
A robust circular connector for industrial use, offering high watertight and dustproof performance, suitable for signal and power connections.
In addition to being compatible with a wide variety of applications, the connection also provides stable signal transmission and power.

  • M12
  • Signal Tower
  • Φ60
  • Continuous on
  • Alarm
  • Indoor
  • Red
  • Amber
  • Green
  • Blue
  • White
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)
  • Signal Towers (M12 ) LR6 (Quick Disconnect M12)

Simplified wiring significantly reduces wiring time.

Reduce Wiring Workload During Equipment Installation.

Save time and effort with a single M12 cable, making attachment and detachment quick and easy.

Reducing Installation Workload During Equipment Implementation

No Need for Relay Boxes and Maintenance

Using a watertight M12 connector eliminates the need for relay boxes as well as making maintenance and rewiring more efficient.

No relay box required, reducing the number of components.

Prevent Incorrect Wiring

Having only one cable to connect for installation and removal, the M12 ensures proper connection and no faulty wiring.

No preprocessing required! Simplified wiring prevents miswiring.

M12 Connector Pin Layout

4-pin plug(male)
Buzzer Unit WD Transmitter
Not Supported Not Supported
5-pin plug(male)
Buzzer Unit WD Transmitter
Supported Not Supported
8-pin plug (male)
Buzzer Unit WD Transmitter
Supported Supported

Caution

  • For 4-pin and 5-pin models, standard blue, white, and multi-color LED units cannot be used.Please use custom blue and white LED units.
  • Cable not included with this product.

Using Blue and White LED units with 4-pin or 5-pin models

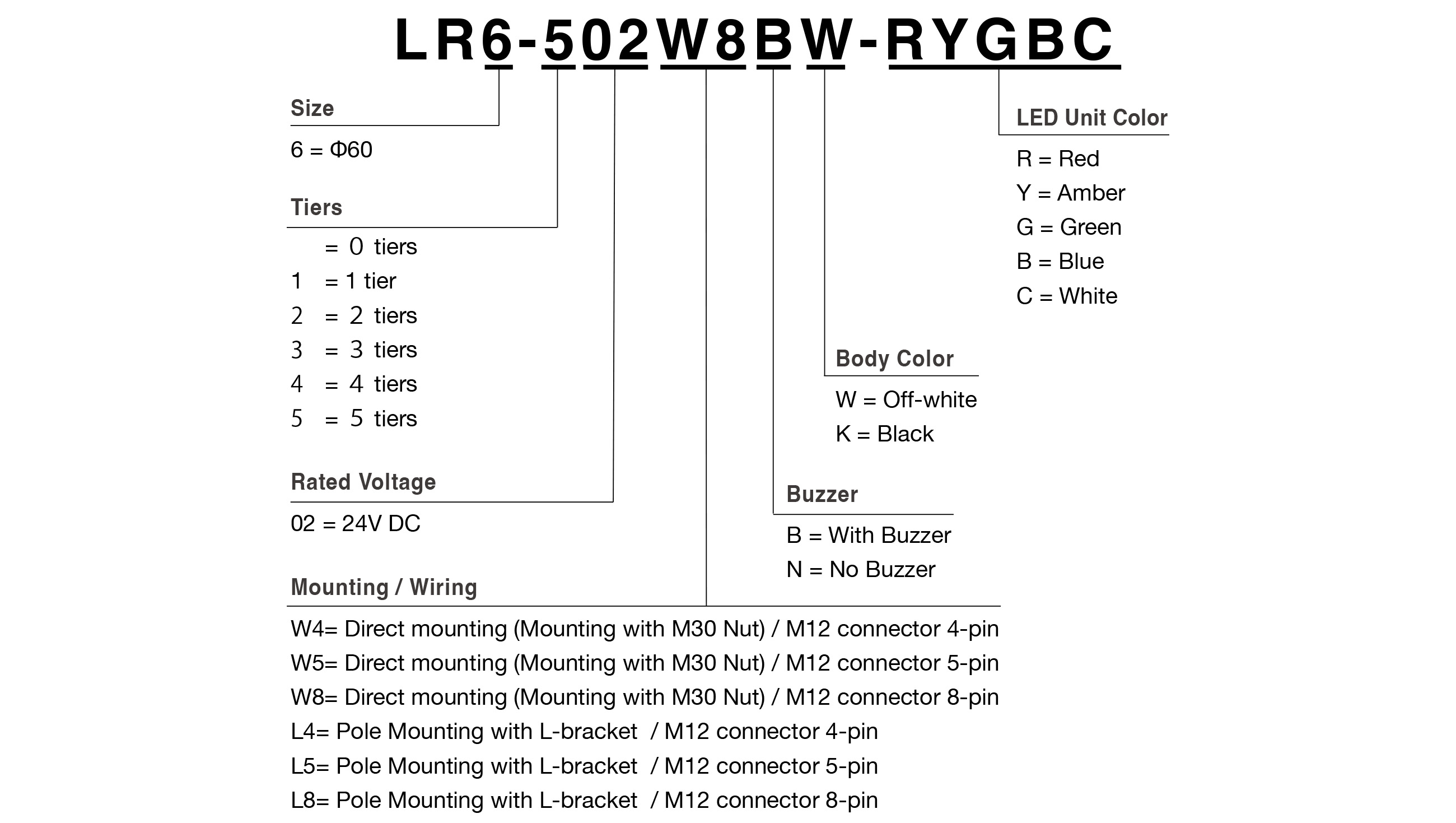

Model Code

Model Code

Product List

M12 Connector 4-Pin Specification - Assembled Product

Model Number
of Tiers
Rated Voltage Mounting Wiring Specification Buzzer WD Transmitter
Compatible
Body Color LED Unit Color
LR6-102W4NW-R 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Red
LR6-102W4NW-Y 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Amber
LR6-102W4NW-G 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Green
LR6-202W4NW-RY 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Red, Amber
LR6-202W4NW-RG 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Red, Green
LR6-302W4NW-RYG 3 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Off-White Red, Amber, Green
LR6-102W4NK-R 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Red
LR6-102W4NK-Y 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Amber
LR6-102W4NK-G 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Green
LR6-202W4NK-RY 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Red, Amber
LR6-202W4NK-RG 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Red, Green
LR6-302W4NK-RYG 3 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 4-Pin None Not Supported Black Red, Amber, Green

M12 Connector 5-Pin Specification - Assembled Product

Model Number
of Tiers
Rated Voltage Mounting Wiring Specification Buzzer WD Transmitter
Compatible
Body Color LED Unit Color
LR6-102W5BW-R 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Red
LR6-102W5BW-Y 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Amber
LR6-102W5BW-G 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Green
LR6-202W5BW-RY 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Red, Amber
LR6-202W5BW-RG 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Red, Green
LR6-302W5BW-RYG 3 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Off-White Red, Amber, Green
LR6-102W5BK-R 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Red
LR6-102W5BK-Y 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Amber
LR6-102W5BK-G 1 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Green
LR6-202W5BK-RY 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Red, Amber
LR6-202W5BK-RG 2 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Red, Green
LR6-302W5BK-RYG 3 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 5-Pin With Buzzer Not Supported Black Red, Amber, Green

M12 Connector 8-Pin Specification Body Unit

Model Number
of Tiers
Rated Voltage Mounting Wiring Specification Buzzer WD Transmitter
Compatible
Body Color LED Unit Color
LR6-02W8NW 0 DC24V Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Off-White Body Only
LR6-02W8NK 0 DC24V Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Black Body Only

M12 Connector 8-Pin Specification Assembled Product

Model Number
of Tiers
Rated Voltage Mounting Wiring Specification Buzzer WD Transmitter
Compatible
Body Color LED Unit Colors
LR6-302W8NW-RYG 3 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Off-White Red, Amber, Green
LR6-402W8NW-RYGB 4 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Off-White Red, Amber, Green, Blue
LR6-502W8NW-RYGBC 5 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Off-White Red, Amber, Green, Blue, White
LR6-402W8BW-RYGB 4 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin With Buzzer Supported Off-White Red, Amber, Green, Blue
LR6-502W8BW-RYGBC 5 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin With Buzzer Supported Off-White Red, Amber, Green, Blue, White
LR6-402W8NK-RYGB 4 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Black Red, Amber, Green, Blue
LR6-502W8NK-RYGBC 5 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin None Supported Black Red, Amber, Green, Blue, White
LR6-402W8BK-RYGB 4 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin With Buzzer Supported Black Red, Amber, Green, Blue
LR6-502W8BK-RYGBC 5 24V DC Direct Mounting (M30 Nut Mounting) M12 Connector 8-Pin With Buzzer Supported Black Red, Amber, Green, Blue, White

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

LR6-W4 / W5 / W8  

LR6-W4 / W5 / W8  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover: LR6
B32310072-7F1 1

																Filter Sheet: LR6 (5 pieces)
B25310067-6F1 1-5: Depends on the number of tiers.

																O-ring: LR6 (5 pieces)
B25110067-F1 2~7  Depends on the number of tiers.

Package contains 5 pieces.
