Φ60mm Smart LED Signal Tower Lights
LA6 Series
Simplify visual and audible signaling with LA6 Smart Signal Tower. One device, 21 LED colors, 11 alarms, and web-based setup. Models available for 24V DC or 100–240V AC.
- I/O Control
- Signal Tower
- Φ60
- Continuous on
- Flashing (Strobe)
- Pulse (Sine Wave)
- Alarm
- 85dB
- Indoor
- IP54
- IP65
- Multi-color
Product Features
- Built-in web interface for quick and easy configuration
- Includes 21 programmable LED colors
- Continuous light, flashing, or pulsing
- 24V DC and 100-240V AC (M2 type)
- Click here to download [link to download] the free programming software.
Specifications
| Dimensions | Φ60mm |
| Rated Voltage | 24V DC 100-240V AC （WJ Type Only） |
| Functions | Operates in three different display modes: Single Display Time-trigger Display Pulse-trigger Display |
| Mounting | Direct Mounting (TN, WJ Type) Steel Pole Mounting (LJ Type) |
| Body Color | Off-white Silver |
| Body Style | TN : Screwless Terminal LJ : Pole with Cable Connection WJ : Direct Mount with Cable Connection |
| Stackable tiers | 3 Tier 5 Tier |
| Module Colors | 21 colors |
| Audible Style | 11 alarm sounds available |
| Conformity Standards | EMC Directive RoHS Directive UL 508 FCC KC |
| Protection Rating | IP65 IP54 (with Alarm) |
| Remarks | Free downloadable application software UL Recognized Components (24V type only) |
Movie
To download free software from our Exclusive LA6 Webpage, click here!
Sample (Sound / Audio)

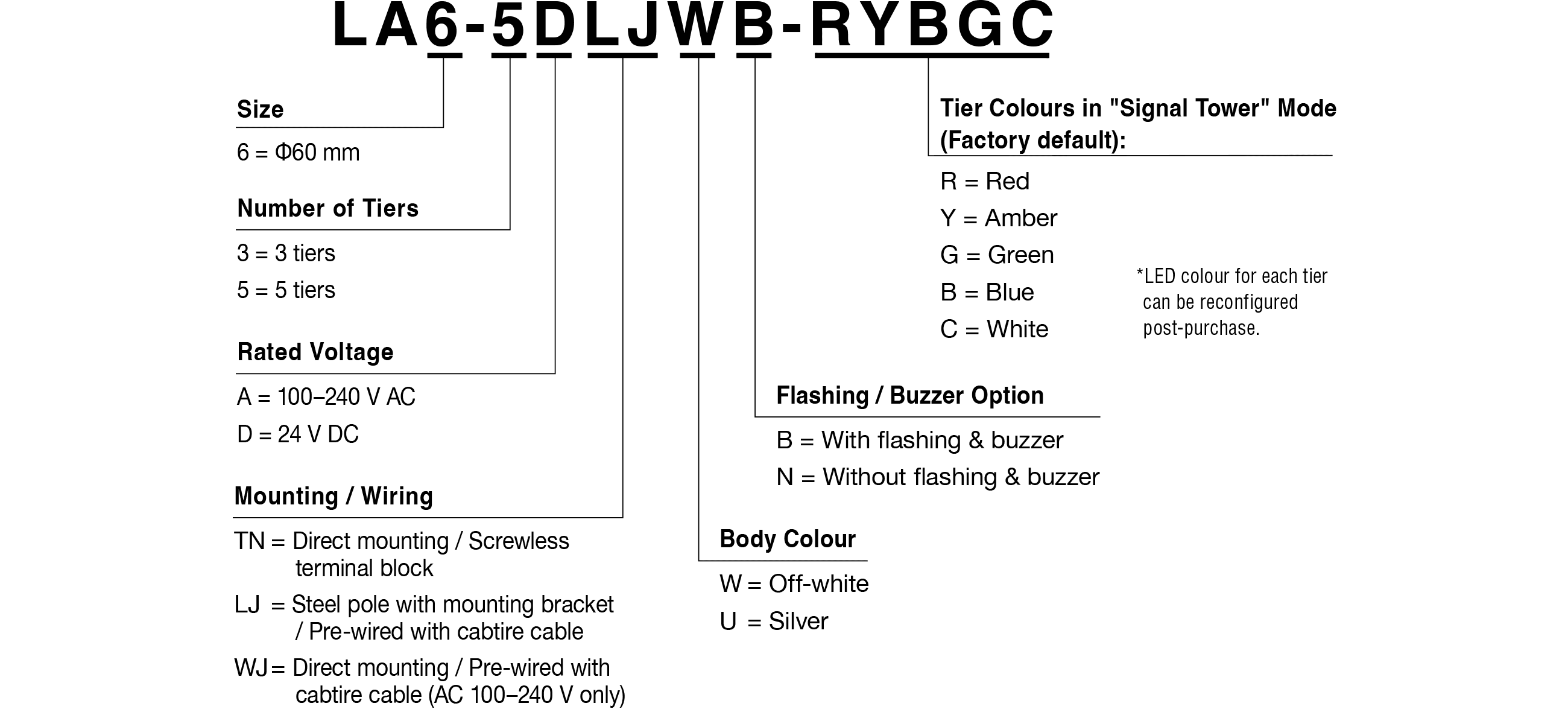

Model Number Configuration
Model Code
Product List
| Model Number | Number of Tiers | Rated Voltage | Mounting Type | Wiring | Function | Buzzer | Body Color | Luminous Color |
|---|---|---|---|---|---|---|---|---|
| LA6-3DWJWB-RYG | 3 | 24V DC | Direct Mount | Cable | Continuous On and Flashing | ✔︎ | Off-White | Multi-color (21 colors) |
| LA6-3DWJWN-RYG | 3 | 24V DC | Direct Mount | Cable | Continuous On and Flashing | - | Off-White | |
| LA6-3DWJUB-RYG | 3 | 24V DC | Direct Mount | Cable | Continuous On and Flashing | ✔ | Silver | |
| LA6-3DWJUN-RYG | 3 | 24V DC | Direct Mount | Cable | Continuous On | - | Silver | |
| LA6-3DTNWB-RYG | 3 | 24V DC | Direct Mount | Terminal block | Continuous On and Flashing | ✔ | Off-White | |
| LA6-3DTNWN-RYG | 3 | 24V DC | Direct Mount | Terminal block | Continuous On | - | Off-White | |
| LA6-3DTNUB-RYG | 3 | 24V DC | Direct Mount | Terminal block | Continuous On and Flashing | ✔ | Silver | |
| LA6-3DTNUN-RYG | 3 | 24V DC | Direct Mount | Terminal block | Continuous On | - | Silver | |
| LA6-3DLJWB-RYG | 3 | 24V DC | Pole with L-bracket | Cable | Continuous On and Flashing | ✔ | Off-White | |
| LA6-3DLJWN-RYG | 3 | 24V DC | Pole with L-bracket | Cable | Continuous On | - | Off-White | |
| LA6-5DTNWB-RYGBC | 5 | 24V DC | Direct Mount | Terminal block | Continuous On and Flashing | ✔ | Off-White | |
| LA6-5DTNWN-RYGBC | 5 | 24V DC | Direct Mount | Terminal block | Continuous On | - | Off-White | |
| LA6-5DTNUB-RYGBC | 5 | 24V DC | Direct Mount | Terminal block | Continuous On and Flashing | ✔ | Silver | |
| LA6-5DTNUN-RYGBC | 5 | 24V DC | Direct Mount | Terminal block | Continuous On | - | Silver | |
| LA6-5DWJWB-RYGBC | 5 | 24V DC | Direct Mount | Cable | Continuous On and Flashing | ✔ | Off-White | |
| LA6-5DWJWN-RYGBC | 5 | 24V DC | Direct Mount | Cable | Continuous On | - | Off-White | |
| LA6-5DWJUB-RYGBC | 5 | 24V DC | Direct Mount | Cable | Continuous On and Flashing | ✔ | Silver | |
| LA6-5DWJUN-RYGBC | 5 | 24V DC | Direct Mount | Cable | Continuous On | - | Silver | |
| LA6-5DLJWB-RYGBC | 5 | 24V DC | Pole with L-bracket | Cable | Continuous On and Flashing | ✔︎ | Off-White | |
| LA6-5DLJWN-RYGBC | 5 | 24V DC | Pole with L-bracket | Cable | Continuous On | - | Off-White | |
| LA6-5AWJWB-RYGBC | 5 | 100 - 240V AC | Direct Mount | Cable | Continuous On and Flashing | ✔ | Off-White |
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
Manual (En) File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D_[CAD_[(zip)Product Specifications
repair parts
LA6-□DLJW□(Steel Pole & L-Bracket with Cable )
LA6-□DLJW□(Steel Pole & L-Bracket with Cable )
Replacement Parts
| Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
|---|---|---|---|---|---|---|
|
B22202027-7F1 | 1 | ||||
|
B31310001-7F1 | 1 | ||||
|
B22100071-7F1 | 1 | ||||
|
B25110042-F1 | 1 | ||||
|
B22210134-7F1 | 1 | ||||
|
B25110047-F1 | 1 | ||||
|
|
