Touch MultiColor LED Signal Light Indicator

Products

NE-A 56mm Signal Beacon: LED Signal Light Series featuring mono-color or multi-color models with a capacitive touch sensor and rugged housing for maximum versatility.

【Multi-color Model】

Capacitive touch sensor enables real-time status confirmations

Features simultaneous use of continuous, flashing, and audible alarm conditions

Up to 7 selectable LED colors

Toggle between 4 patterns (red, blue, white, or off) while in touch sensor mode

High protection rating for operation in harsh environments

【Mono-color Model】

Choose from 5 LED color options (Red, Amber, Green, Blue, White)

Newly developed reflector emits evenly distributed light, for clear, unambiguous indication

High protection rating for operation in harsh environments

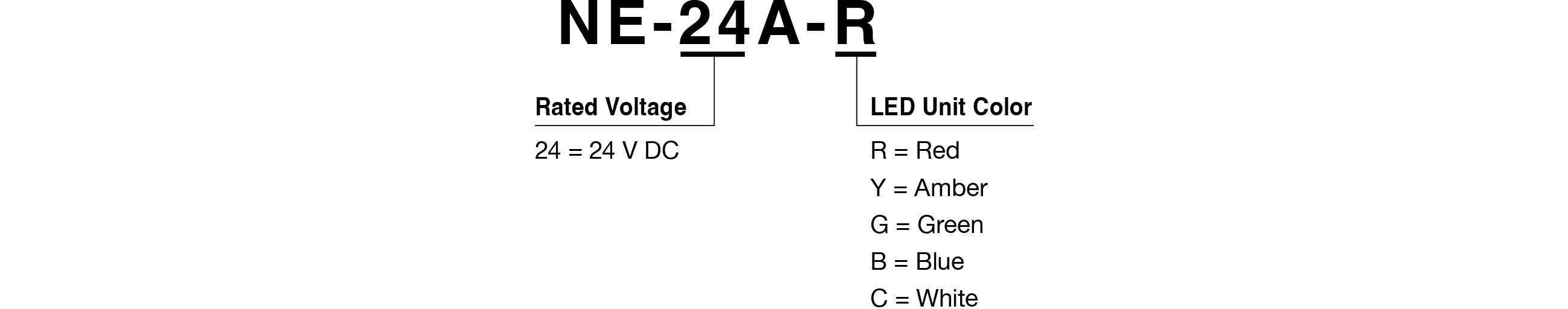

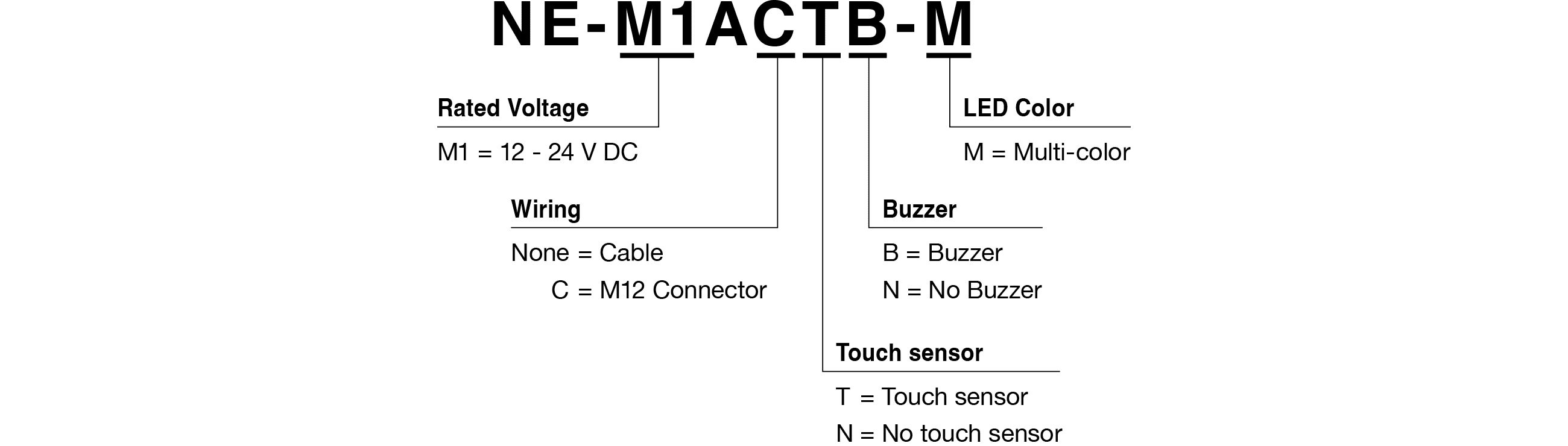

Model	NE-24A-□ □：R/Y/G/B/C	NE-M1ANN-M	NE-M1ANB-M	NE-M1ATB-M
Dimensions	Φ56mm
Operating Voltages	24V DC	12-24V DC
Mounting location	Indoor
mounting direction	all directions
Protection Rating	IP65 NEMA TYPE 4X, 13	IP67 NEMA TYPE 4X, 13	IP65 NEMA TYPE 4X, 13
Light Color Options	Red / Amber / Green / Blue / White	Multi-color ( Red / Amber / Green / Blue / White / Cyan / Purple )
Sound Pressure	-		88dB Intermittent or Continuous
Operation Specification	Continuous	Continuous / Flashing		Continuous / Touch sensor
Wiring	Screwless terminal block	Cabtire cable (2m)
