Network Signal Tower with Voice Annunciator

Notifies network information immediately by light, sound, and voice. Convert text data to voice message with the Text to Speech function.

  • Network Products
  • Ethernet (RJ-45)
  • Digital IO
  • Signal Tower
  • Φ40:NHV4
  • Φ60:NHV6
  • Continuous on
  • Flashing (Strobe)
  • Alarm/Chime/Voice
  • 88dB or more
  • Indoor
  • IP20
  • Red
  • Amber
  • Green
  • Blue
  • White
  • Network Signal Tower with Voice Annunciator NHV4 / NHV6


  • Supports various network protocols.
    Immediately reports events and abnormalities of network devices and systems with light, sound, and voice.
  • Supports secure protocols such as HTTPS, SNMP v3, SSH. Secure communication with peace of mind.
  • This unit is equipped with a "Text to Speech (TTS)" function that converts text data to voice.
    Text information can be converted to voice and registered, and voice notification can be performed in real time by command control.
  • Equipped with an SNMP device monitoring function in addition to dead/alive monitoring by PING monitoring.
    When the MIB information of the network device is actively acquired and the set conditions are met, the administrator is notified immediately by light and sound.
  • Mail Reception Detection (NHV-M only)
    The NHV-M unit accesses the mail server and will light up or play a message when emails that meet preset conditions are received.


  • Voice notification.
    Combine pre-defined messages and input settings to convey detailed information.
  • Broadcast to the entire building using the LINE OUT terminal that can be connected to broadcasting equipment such as PA system, amplifiers or external speakers.
  • 4 digital inputs and 2 digital outputs.(NHV-D/NHV-DP only)
  • Supports PoE power supply (NHV-DP only)

【Model Features】

(Standard model)

The basic NHV series model.
High network security.
(D model)

Standard NHV model plus 4 digital inputs and 2 digital outputs.
Makes it easy to connect with various digital devices.

(DP model)

NHV-D plus PoE power capability.
Using a PoE switch enables installation with reduced wiring.
(IEEE802.3at compliant)
(M model)

The basic model is equipped with an e-mail detection function.
Light, sound, and voice prevent overlooking important emails when they arrive.

Dimming Function
Cloud Control
Audio Playback (MP3)
TTS (Text to Speech)
Digital I/O (4 inputs/2 outputs)
PoE Power ※IEEE802.3at compliant
Mail Detection Function

【Various Installation Methods】

 A wall mounting bracket is also available as an optional accessory.
  Wall Mounting Bracket  :NH-001
  Partition Mounting Bracket:NH-002

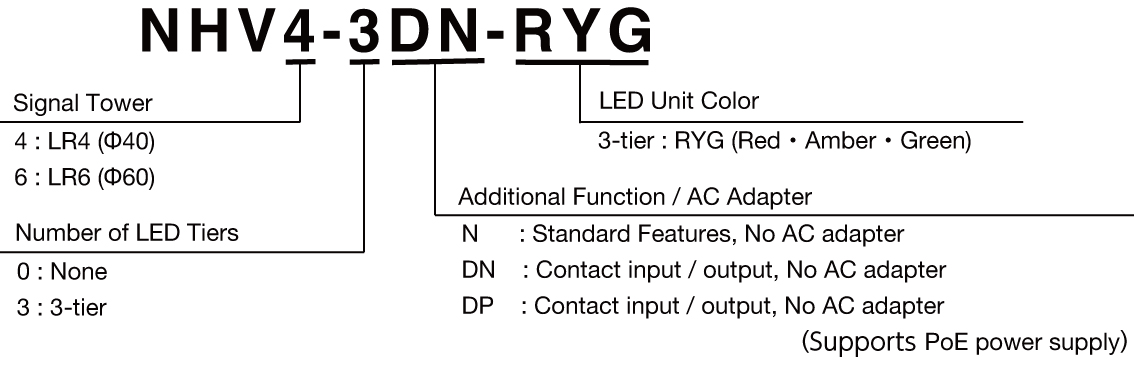

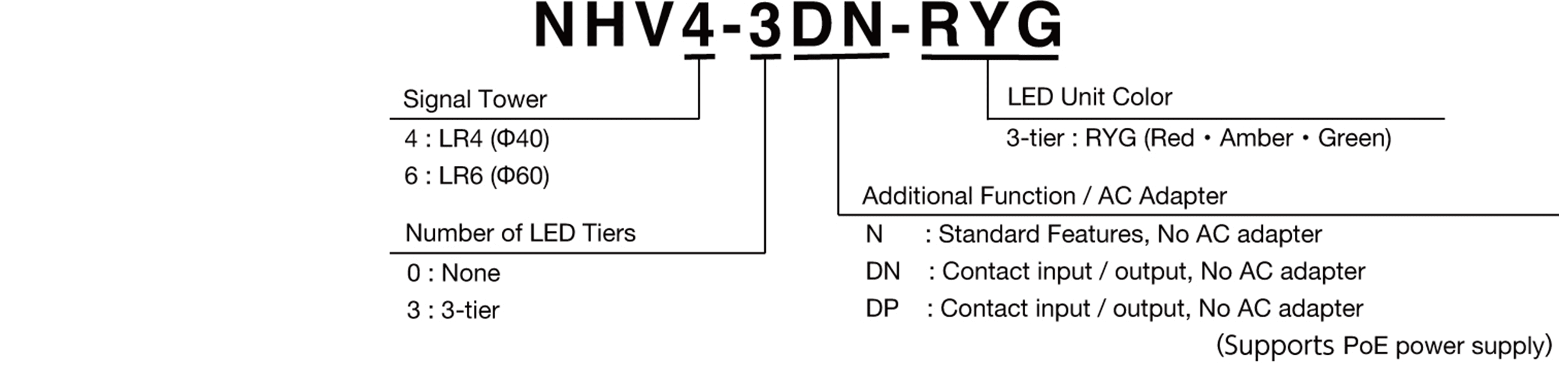

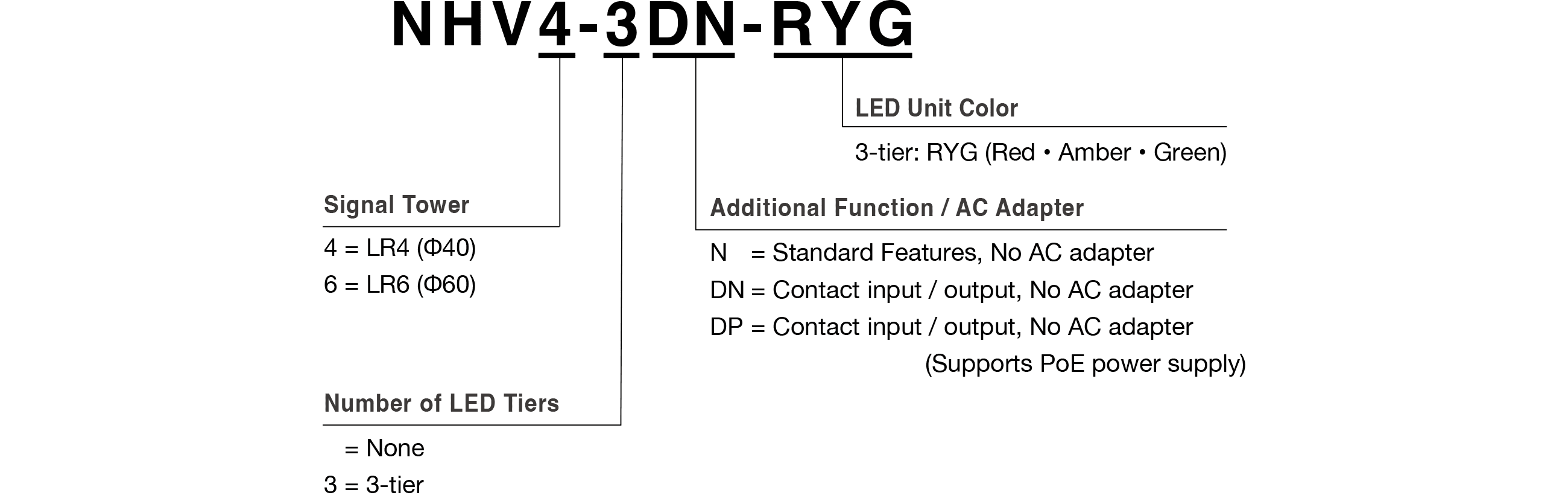

Model Number Configuration

Model Number Configuration
