Φ70mm LED Signal Tower Lights
LR7 Series

Discover the LR7 Series Φ70mm LED Signal Tower Lights, featuring ultra-bright LEDs, modular design, and diverse options to tackle the most demanding applications.

  • I/O Control
  • Signal Tower
  • Φ70
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 90dB
  • Indoor
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White

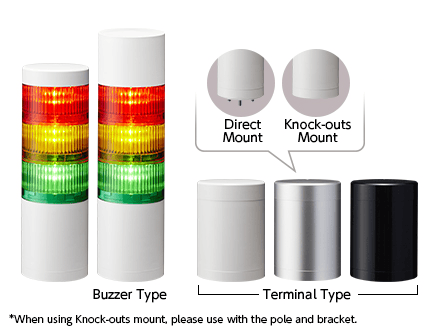

  • Φ70mm LED Signal Tower Lights LR7 Series
  • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
  • Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 12V DC: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
  • A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
  • Rated voltage: 24V DC.
  • Standard body color: Off-white. Silver and black bodies available as components only.
  • Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT).
  • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).

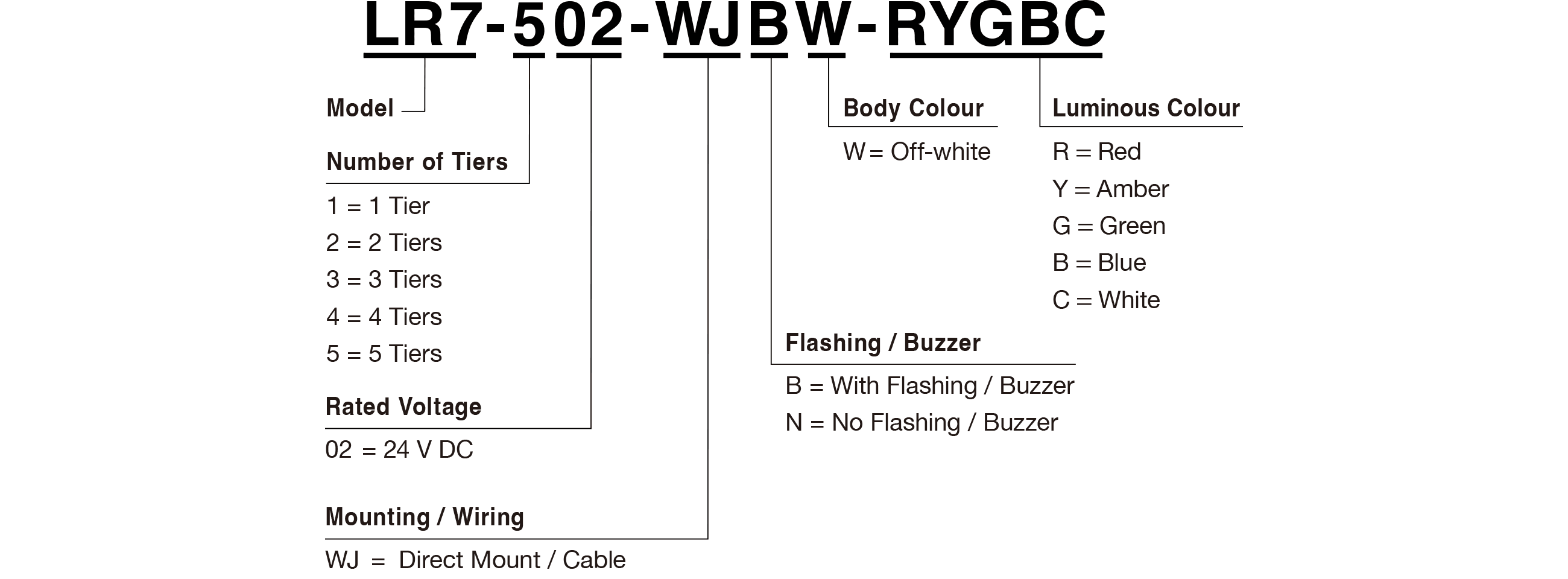

Model Code



Specifications

Operating Ambient Temperature -20℃ ~ +50℃
Operating Ambient Humidity Less than 90% (No condensation)
Storage Temperature Range -30℃ ~ +60℃
Storage Humidity Range Less than 90% (No condensation)
Mounting Location Indoor Only
Mounting Direction Upright
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Condition Upright Position
Insulation Resistance More than 1MΩ at 500V DC between live part and non-current carrying metallic part
Withstand Voltage 500V AC applied for 1min between live part and non-current carrying metallic part without breaking insulationa
Flashing Rate 60±2 Flashes Per Minute
Sound Pressure Level LR7: Typical 90dB
Sound Reduction*2 Approx. -10dB
Environmental Condition Buzzer sound No.4(Sweep) was measured from the total circumfrence of the Buzzer Unit at 1m
Buzzer Sound 4 patterns*2
No.1: Rapid Intermittent Beep / 3378㎐
No.2: Continuous Beep Sound / 3378㎐
No.3: Rapid Hi-Lo / 2016㎐ & 3012㎐
No.4: Sweep Sound / 1000Hz - 4032Hz
Transistor Output NPN / PNP
Conformity Standards
  • UL 508, CSA-C22.2 No.14
  • FCC Part 15 Subpart B Class A
  • RoHS Directive (EN IEC 63000)
  • EMC Directive (EN 61000-6-4, EN 61000-6-2)
  • KC (KN 61000-6-4, KN 61000-6-2)*3

*1 LJ Type is IP54
*2 Dependent on DIP Switch Settings
*3 Except KT, Assembly Model WT



LED Unit Specifications

Color Red Amber Green Blue White
Signal Wire Current (Per Unit) / Rated Power Consumption (Per Unit) Typ. 40mA / 1W
Max. 45mA / 1.3W



Buzzer Unit Specifications

Signal Wire Current (Buzzer Unit) / Rated Power Consumption (Buzzer Unit) Typ. 40mA / 1W
Max. 250mA / 1.3W
