Pole Mount Base Units with Terminal for LR5, LR7
LR5/LR7 Screwless Terminal
Pole Mount Base Units with Terminal for LR5, LR7

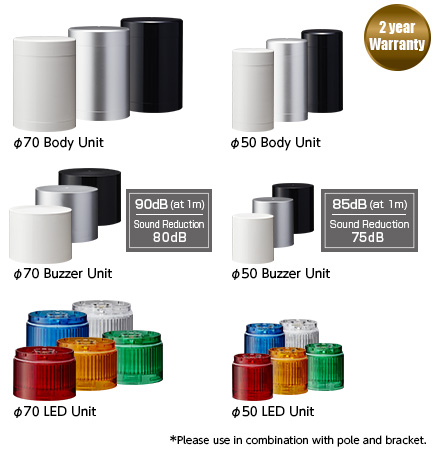

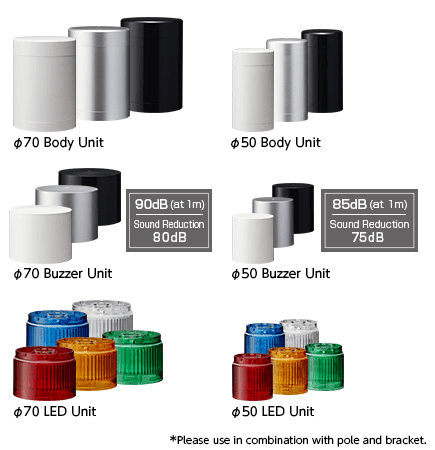

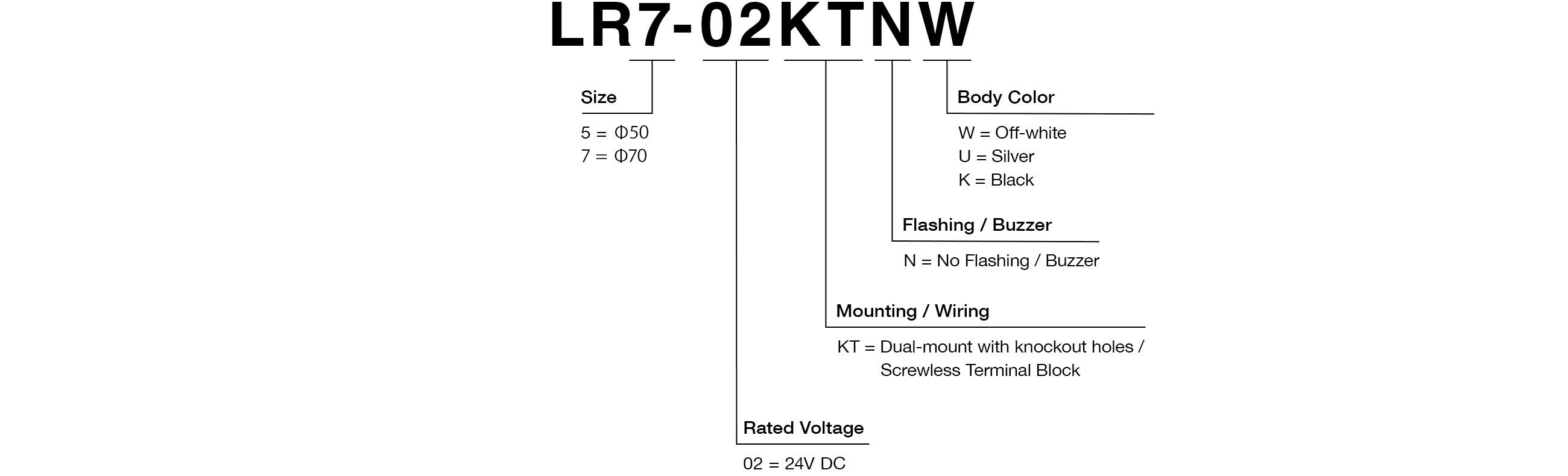

LR5 (50mm) and LR7 (70mm) series' compatible pole mount base units equipped with removable screwless terminals.
Azure function description

Product Features

  • Ideal for businesses that need to customize signal towers for various customers.

  • Built-in knock-out holes make it easy to convert the LR5 or LR7 series signal towers from pole mount to direct mount.

  • Removeable screwless terminal simplifies the wiring process.

  • Rated Voltage: DC24V

  • Available in Off-white, Silver, and Black body options.

  • Base unit only. LED units and sound modules sold separately.

A new removable terminal for easier wiring



Operating Ambient Temperature-20℃ - +50℃
Operating Humidity Range90% RH or less, no condensation
Storage Temperature Range-30℃ - +60℃
Storage Humidity Range90% RH or less, no condensation
Mounting LocationIndoor Use
Mounting DirectionUpright Position
Protection Rating*1IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental ConditionsUpright Position
Insulation ResistanceMore than 1MΩ at DC500V between the power input lead and chassis
Withstand VoltageAC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate60 ±2 Flashes / min
Sound LevelLR5Typ. 85dB  LR7Typ. 90dB
Sound Reduction*2ab. -10dB reduction
Environmental ConditionsBuzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound4 patterns*2No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
Transistor OutputNPN / PNP
Conformity Standards●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)

*1:When using L-braket:IP54(IEC60529) / NEMA TYPE 4X,13   *2:Dependent on DIP Switch Settings

LED Unit Specifications

Current Consumption / Power ConsumptionTyp.0.04A/1W

Buzzer Unit Specifications

Current Consumption / Power ConsumptionTyp.0.04A/1W
