Wireless Control Unit
WIO
Easy Remote Notification with Wireless Control Unit
- I/O Control
- Wireless (Bluetooth 5.0)
- Φ60
- Indoor
- Wireless
Product Features
No PC or Software Required!
Reliable Wireless Communication with Bluetooth® Long Range
Wireless coverage of up to 100 meters in line of sight, with a relay function enabling
long-range communication of up to 400 meters!

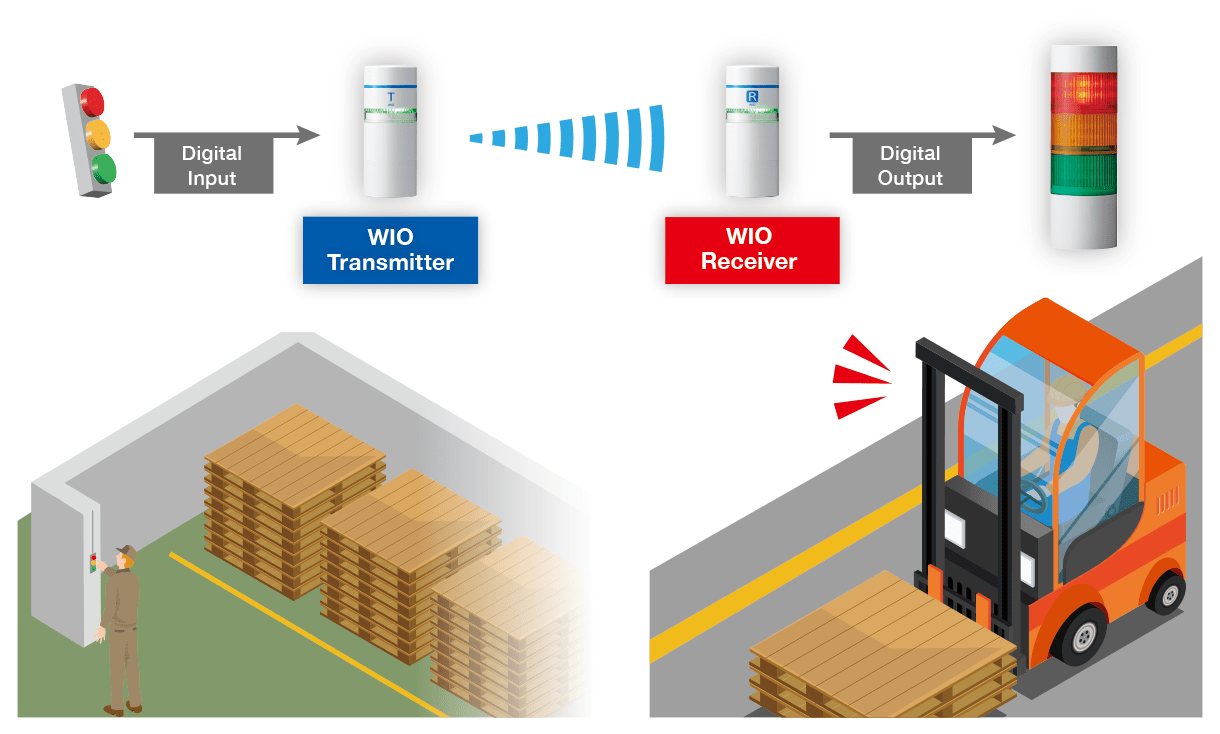

Alerting to Rotating Lights, Indicator Lights, Voice Synthesis Alarms, and more!
Mirror Device Status with Added LED Units!

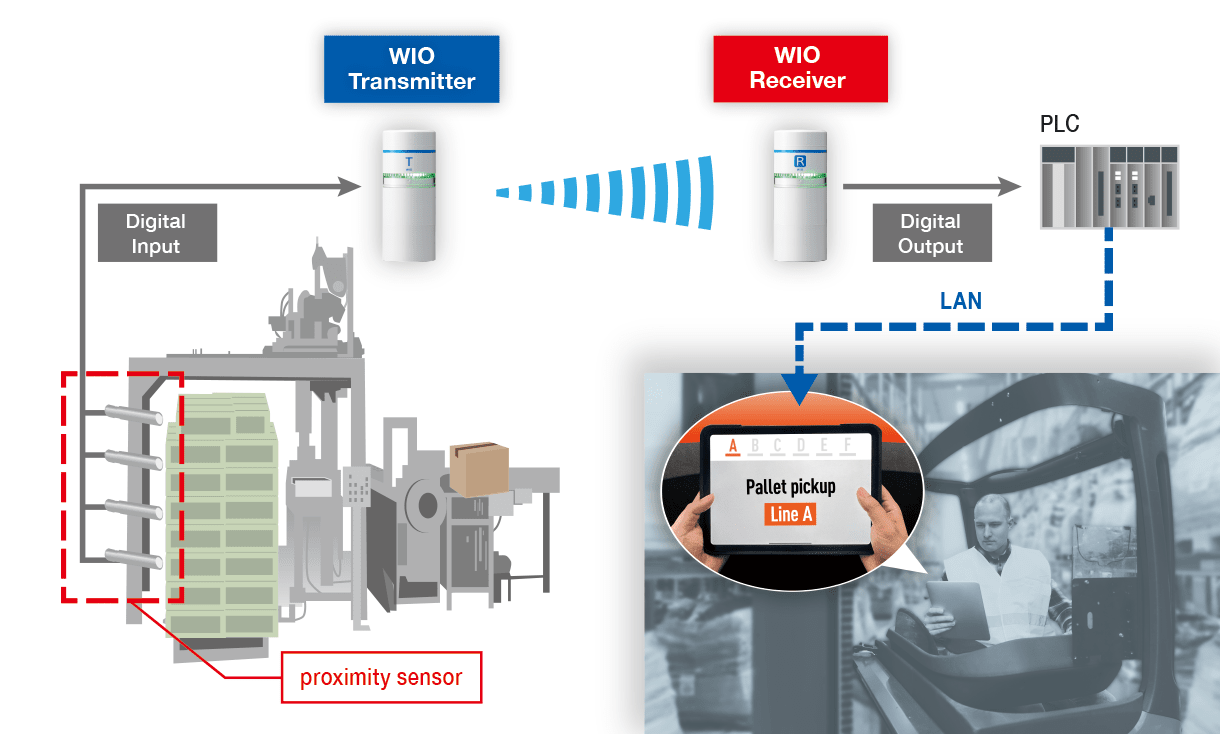

Simple Notification System
Plug & Play for Easy Start
Pairing is complete when the power is turned on. No setup is required, and you can start using it immediately.
The wireless range is up to 100 meters in line of sight.
Reliable Wireless Communication
Utilizing BluetoothⓇ Long Range communication, ensuring stable long-distance communication.
You can check the communication status with indicator colors.
Relay Function
You can use the receiver as a relay* to extend the wireless range up to 400 meters.
*Switchable via the receiver's slide switch
Easy Setup
You can easily configure settings with the main unit's settings switch.
Group ID Configuration
You can operate up to 8 groups within the same area.
Level Mode
You can synchronize the receiver or relay's ON/ OFF output with the transmitter's ON/OFF input.
Input Logic Switching
Selectable between A Contact Input / B Contact Input.
One-Shot Mode
You can set the receiver's output hold time (output hold / 12-second output).
■ Connectable Notification Devices
Model Number Configuration
How To Order
Model / Contents List
Model | Transmitter | Receiver | LED Unit | AC Adapter | |
---|---|---|---|---|---|

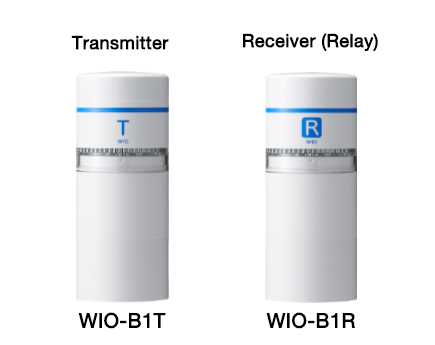

Transmitter | WIO-B1T | ○ | × | × | × |
Receiver | WIO-B1R | × | ○ | × | × |

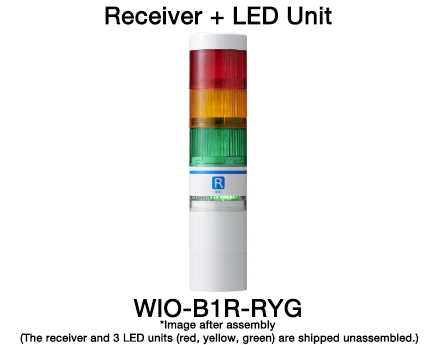

WIO-B1R-RYG | × | ○ | ○ | × | |
Andon kit | WIO-B1S-001 | ○ | ○ | ○ | ○ |
WEB Catalog
Applications
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
Product Specifications
repair parts
WIO
WIO
Replacement Parts
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|
B25110067-F1 | 2~5 Depends on the number of tiers. |
